MINIATURE KEYBOARD SWITCHES – SERIES 9800
SWITCHES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

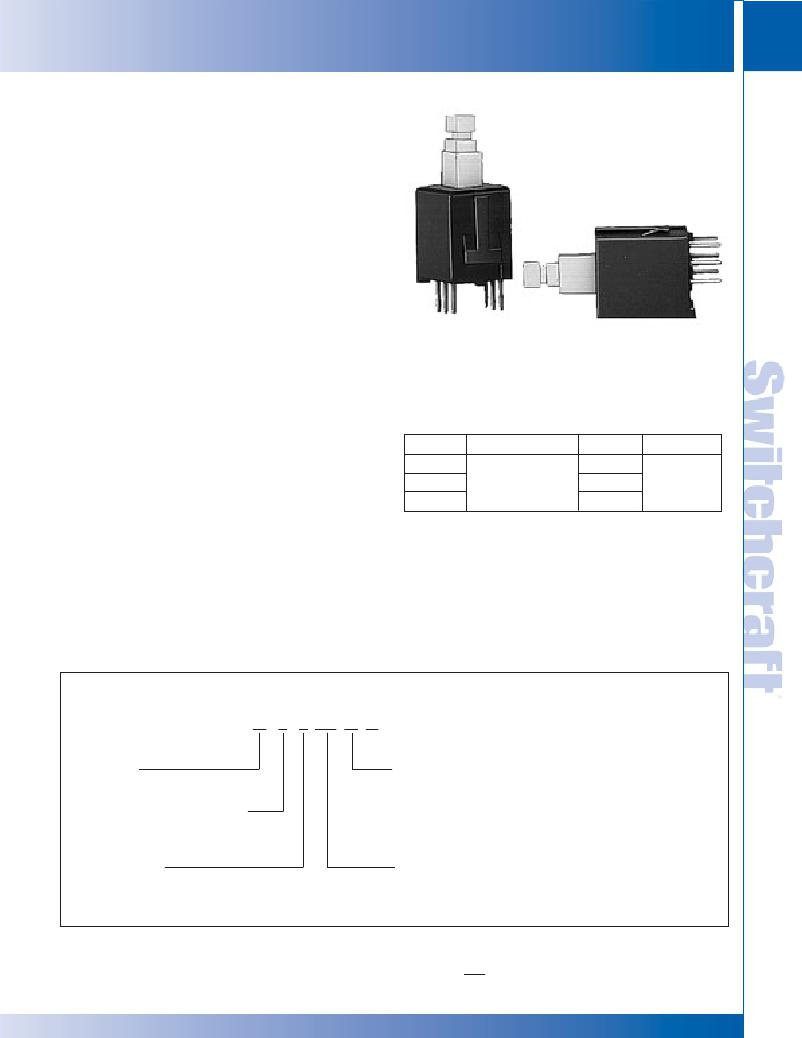

MINIATURE KEYBOARD SWITCHES
IBS MINIATURE SWITCHES
SERIES 98000R
Momentary IBS switches provide cost-effective versatility for a
wide range of electrical/electronic applications including
switching analog and digital signals in business systems,
public address, test instruments, medical, EDP (computer),
input devices and peripheral equipment, local area network,
telecommunication, digital transmission equipment, telephone
systems and attachments and calculators. Convenient
modular design allows quick assembly to PC boards. These
switches are also available in multiple station assemblies
(see page 308).
SPECIFICATIONS
MECHANICAL
Switch Actuation: Momentary
Plunger Travel: .144" (3.66 mm).
Actuation Force (Full Travel): 12-15 ounce (340-425 grams).
269
Life: 1 million operations.
ELECTRICAL
UL approved at .25 A @ 28V DC and .125 A @ 125V AC
ORDERING STANDARD SWITCHES
Order switches and pushbuttons by part numbers from table.
PART NUMBERS
MATERIALS
Housing: Molded thermoplastic UL 94V-0
Plunger: Molded thermoplastic UL 94V-0.
Contactors: Copper alloy.
Part No. 1
982A01R
982A03R
982A06R
Description
Momentary
Circuit
1-A
1-C
2-C
Dim. A
.157"
(4 mm)
Terminals: Copper alloy, solder-plated.
Contact Surfaces: Gold-plated.
MOUNTING
Switches have .157" (4 mm) long PC terminals for mounting
on single- or double-sided PC boards up to .094" (2.4 mm)
thick on 0.394" (10 mm) minimum centers in rows or arrays.
0.394" (10 mm) PC terminals available on special order.
Rugged molded-in standoff legs provide stable mounting
1 Order pushbuttons separately.
ORDERING SPECIAL SWITCHES
Contact your Switchcraft representative with full
specifying details.
SPECIAL ORDER FEATURES
? Other circuitry - 1B, 2A or 2B
? Longer terminals - .394" (10 mm) long.
and clearance for PC board cleaning.
IBS SWITCH CATALOG NUMBERING SYSTEM
98 X X XX D R
SERIES ?
98 - 98000R
MECHANICAL FUNCTIONS ?
2 - Momentary
TERMINALS ?
? D - Make-Before-Break (Shorting Contacts)
(Use with 03, 06 circuits only when required.)
? CIRCUITS
A - .157" (4 mm)
? B - .394" (10 mm)
? Special order only; contact Switchcraft for price and delivery.
* Non-shorting (break-before-make) contacts
01 - 1A
? 02 - 1B
03 - 1C*
? 04 - 2A
? 05 - 2B
06 - 2C
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
